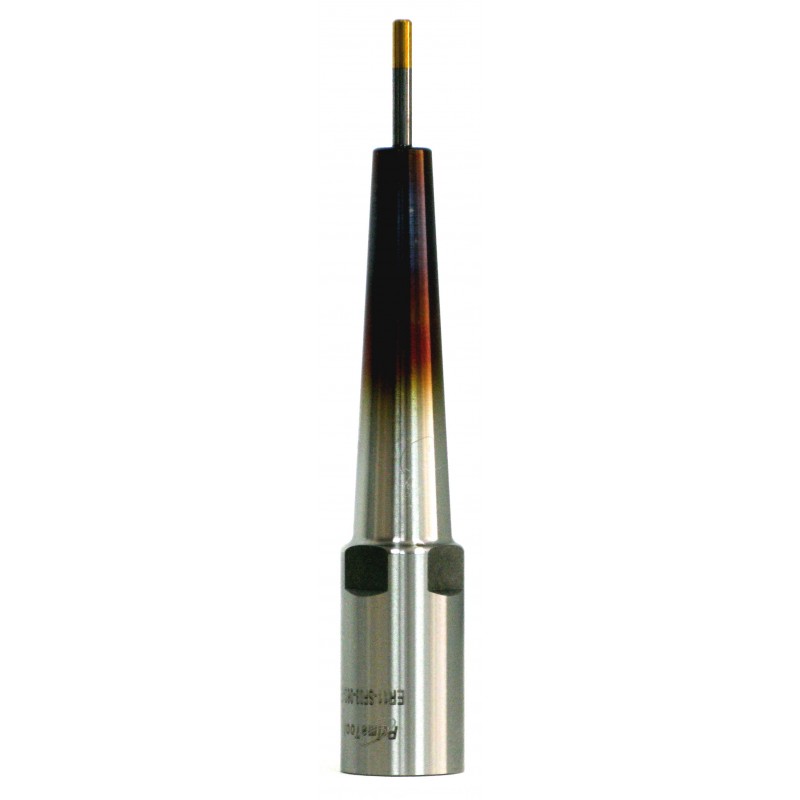

熱縮式延長桿-3°
- 表面硬化硬度 : HRC 52 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G2.5 25000 rpm

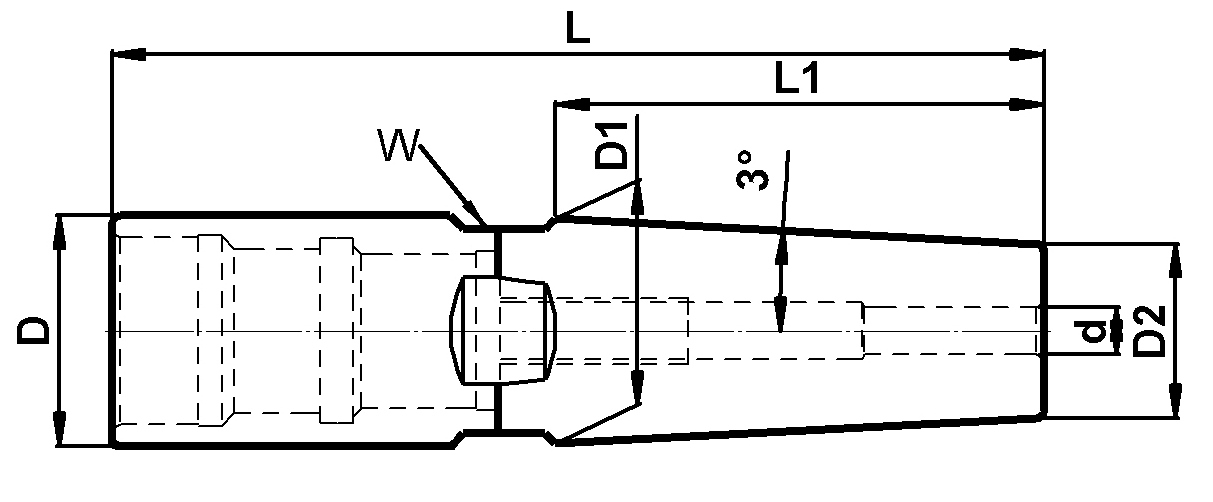

| 產品名稱 | D | L | 詢價數量 | |
|---|---|---|---|---|
| IR8S-SF03-060-3° | 16mm | 80mm |
|
|
| IR8S-SF03-100-3° | 16mm | 120mm |
|
|
| IR8S-SF04-060-3° | 16mm | 80mm |
|
|
| IR8S-SF04-100-3° | 16mm | 120mm |
|
|
| IR8S-SF05-060-3° | 16mm | 80mm |
|
|
| IR8S-SF05-100-3° | 16mm | 120mm |
|
|
| IR8S-SF06-060-3° | 16mm | 80mm |
|
|
| IR8S-SF06-100-3° | 16mm | 120mm |
|
|
| IR11-SF03-060-3° | 19mm | 95mm |
|
|
| IR11-SF03-100-3° | 19mm | 135mm |
|
|
| IR11-SF04-060-3° | 19mm | 95mm |
|
|
| IR11-SF04-100-3° | 19mm | 135mm |
|
|
| IR11-SF05-060-3° | 19mm | 95mm |
|
|
| IR11-SF05-100-3° | 19mm | 135mm |
|
|
| IR11-SF06-060-3° | 19mm | 95mm |
|
|
| IR11-SF06-100-3° | 19mm | 135mm |
|
|
| IR11-SF08-060-3° | 19mm | 95mm |
|
|
| IR11-SF08-100-3° | 19mm | 135mm |
|
|
| IR11-SF10-060-3° | 19mm | 95mm |
|
|
| IR11-SF10-100-3° | 19mm | 135mm |
|
|
| IR11-SF12-060-3° | 21mm | 95mm |
|
|
| IR11-SF12-100-3° | 21mm | 135mm |
|
|
| IR16-SF12-100-3° | 28mm | 154mm |
|
|
| IR16-SF16-060-3° | 28mm | 114mm |
|
|
| IR16-SF16-100-3° | 28mm | 154mm |
|
|
| IR20-SF16-100-3° | 34mm | 155mm |
|
|
| IR20-SF20-060-3° | 34mm | 115mm |
|
|
| IR20-SF20-100-3° | 34mm | 155mm |
|
|
| IR25-SF25-060-3° | 42mm | 122mm |
|
|
| IR25-SF25-100-3° | 42mm | 162mm |
|
