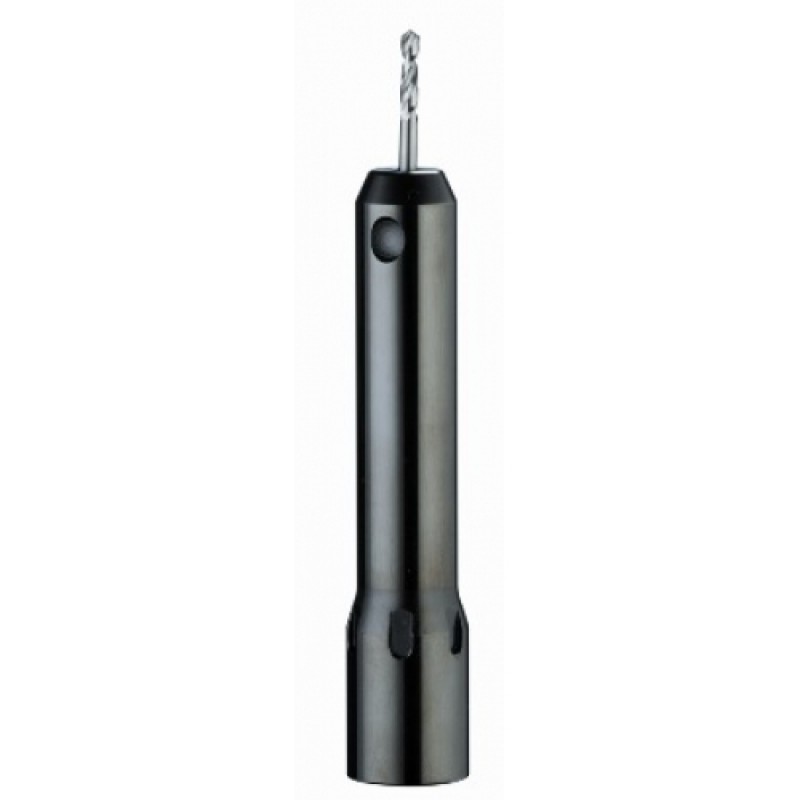

側固式延長桿
- 表面硬化硬度 : HRC 56 ± 2
- 偏擺 : 0.005mm(0.0002")
- 動平衡等級 : G2.5 25000 rpm
| 產品名稱 | D | L | 詢價數量 | |
|---|---|---|---|---|
| IR16-EM06-060 | 28mm | 114mm |
|
|
| IR16-EM06-100 | 28mm | 154mm |
|
|
| IR16-EM08-060 | 28mm | 114mm |
|
|
| IR16-EM08-100 | 28mm | 154mm |
|
|
| IR20-EM08-112 | 34mm | 167mm |
|
|
| IR20-EM10-060 | 34mm | 115mm |
|
|
| IR20-EM10-100 | 34mm | 155mm |
|
|
| IR25-EM12-060 | 42mm | 122mm |
|
|
| IR25-EM12-100 | 42mm | 162mm |
|
|
| IR25-EM14-060 | 42mm | 122mm |
|
|
| IR25-EM14-100 | 42mm | 162mm |
|
|
| IR25-EM16-060 | 42mm | 122mm |
|
|
| IR25-EM16-100 | 42mm | 162mm |
|
|
| IR32-EM16-060 | 50mm | 126mm |
|
|
| IR32-EM16-100 | 50mm | 166mm |
|
|
| IR32-EM18-060 | 50mm | 126mm |
|
|
| IR32-EM18-100 | 50mm | 166mm |
|
|
| IR32-EM20-060 | 50mm | 126mm |
|
|
| IR32-EM20-100 | 50mm | 166mm |
|
|
| IR40-EM20-112 | 63mm | 182mm |
|
|
| IR40-EM25-060 | 63mm | 129.5mm |
|
|
| IR40-EM25-100 | 63mm | 169.5mm |
|
|
| IR40-EM25-112 | 63mm | 181.5mm |
|
|
| IR41-EM32-060 | 70mm | 129.5mm |
|
|
| IR41-EM32-100 | 70mm | 169.5mm |
|
|
| IR41-EM40-100 | 70mm | 169.5mm |
|
|
| IR41-EM42-100 | 70mm | 169.5mm |
|
|
| IR42-EM50-100 | 85mm | 169.5mm |
|
