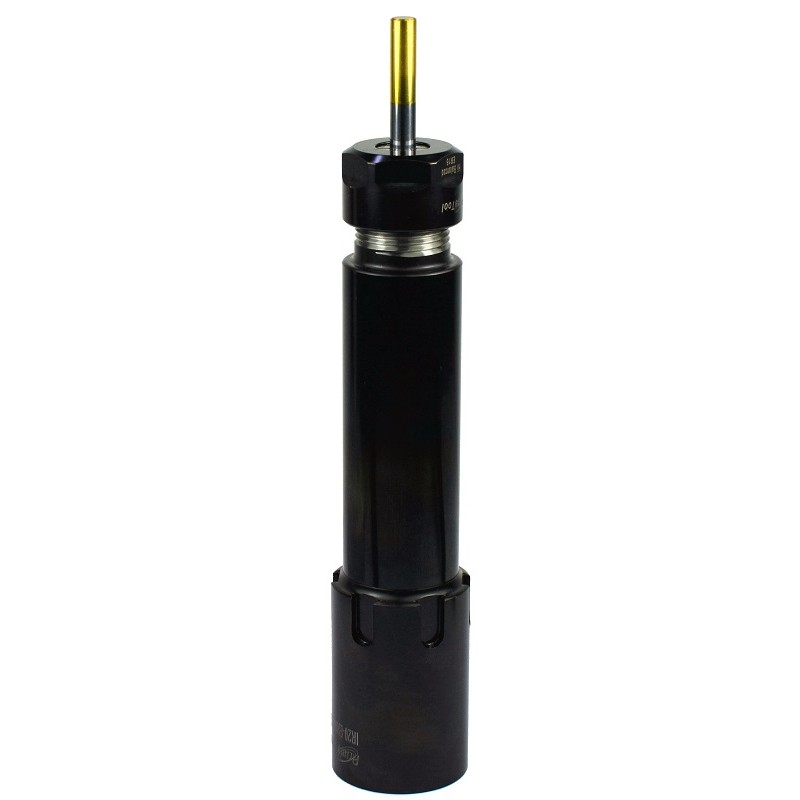

筒夾式延長桿
- 表面硬化硬度 : HRC 56 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G2.5 25000 rpm

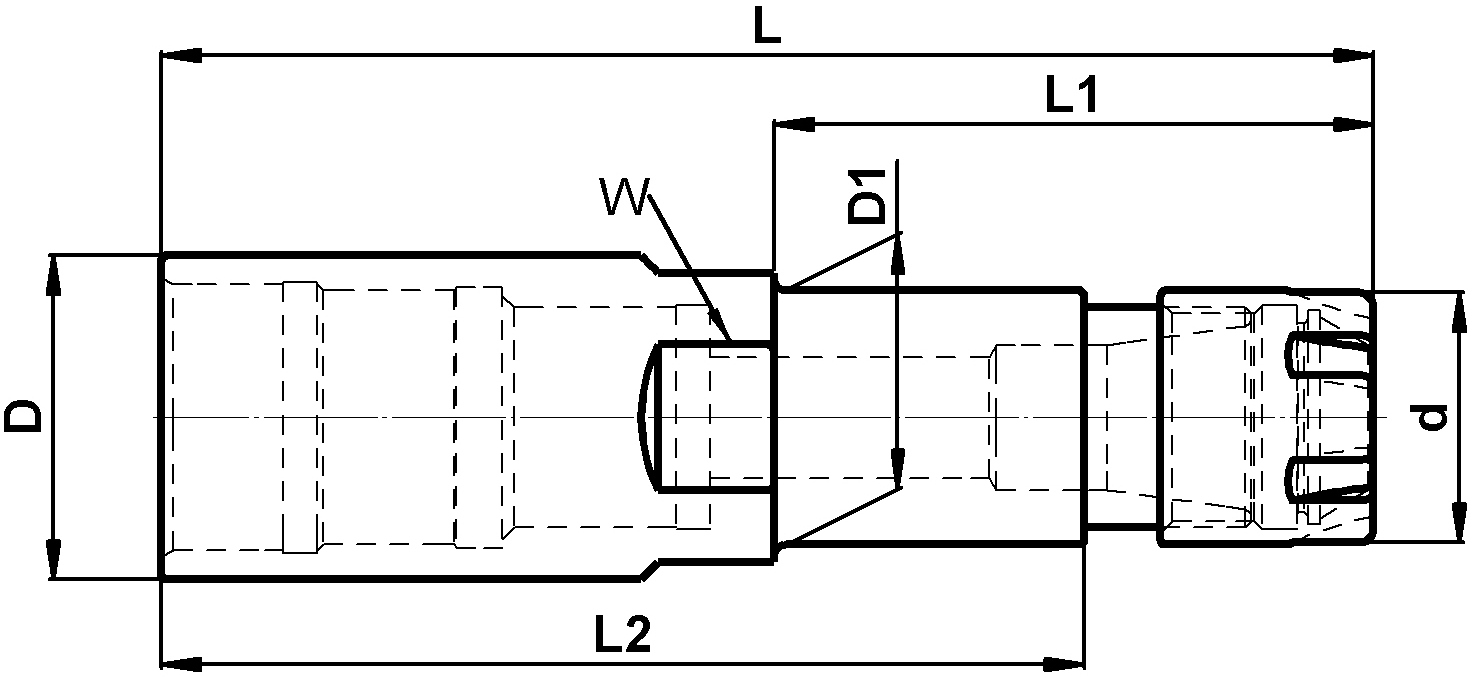

| 產品名稱 | D | L | 詢價數量 | |
|---|---|---|---|---|
| IR11-ER11-060 | 19mm | 95mm |
|
|
| IR11-ER11-100 | 19mm | 135mm |
|
|
| IR16-ER11-060 | 28mm | 114mm |
|
|
| IR16-ER11-100 | 28mm | 154mm |
|
|
| IR16-ER16-060 | 28mm | 115mm |
|
|
| IR16-ER16-100 | 28mm | 155mm |
|
|
| IR16-ER16-112 | 28mm | 167mm |
|
|
| IR20-ER16-100 | 34mm | 156mm |
|
|
| IR20-ER16-112 | 34mm | 168mm |
|
|
| IR20-ER20-060 | 34mm | 117mm |
|
|
| IR20-ER20-100 | 34mm | 157mm |
|
|
| IR20-ER20-112 | 34mm | 166mm |
|
|
| IR25-ER16-100 | 42mm | 163mm |
|
|
| IR25-ER16-112 | 42mm | 175mm |
|
|
| IR25-ER20-100 | 42mm | 164mm |
|
|
| IR25-ER25-060 | 42mm | 122mm |
|
|
| IR25-ER25-100 | 42mm | 162mm |
|
|
| IR32-ER16-100 | 50mm | 166mm |
|
|
| IR32-ER16-112 | 50mm | 178mm |
|
|
| IR32-ER20-100 | 50mm | 166mm |
|
|
| IR32-ER20-112 | 50mm | 178mm |
|
|
| IR32-ER25-100 | 50mm | 166mm |
|
|
| IR32-ER25-112 | 50mm | 178mm |
|
|
| IR32-ER32-060 | 50mm | 126mm |
|
|
| IR32-ER32-100 | 50mm | 166mm |
|
|
| IR32-ER32-112 | 50mm | 178mm |
|
|
| IR40-ER25-100 | 63mm | 170mm |
|
|
| IR40-ER25-112 | 63mm | 182mm |
|
|
| IR40-ER32-100 | 63mm | 170mm |
|
|
| IR40-ER32-112 | 63mm | 182mm |
|
|
| IR40-ER40-060 | 63mm | 130mm |
|
|
| IR40-ER40-100 | 63mm | 170mm |
|
|
| IR40-ER40-112 | 63mm | 182mm |
|
