BT-IR 模組底座
- AT等級 : AT3+
- 表面硬化硬度 : HRC 56 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G6.3 25000 rpm Option to G2.5 25000 rpm

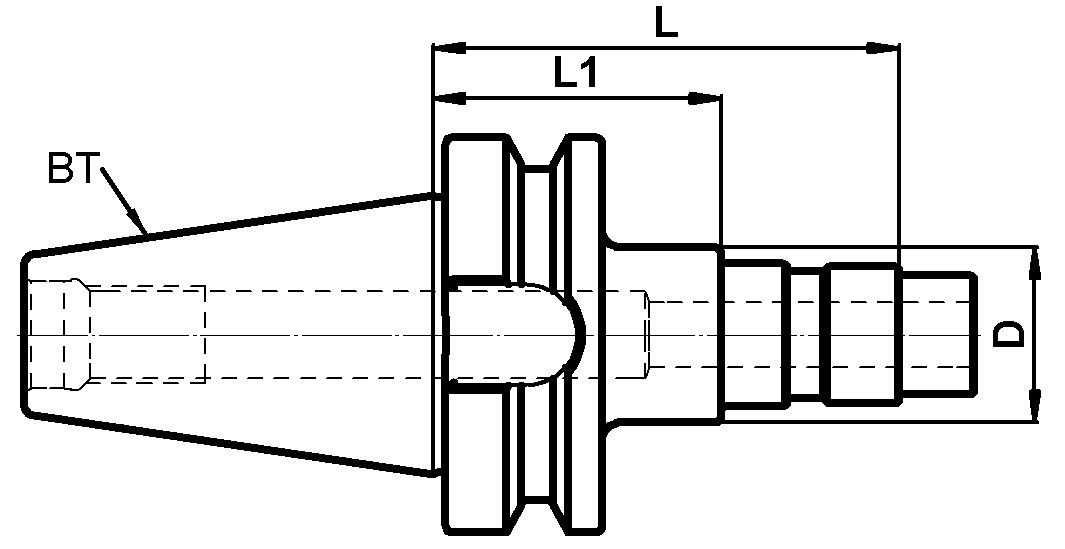

| 產品名稱 | D | L | 詢價數量 | |
|---|---|---|---|---|
| BT30 IR08-070-EX | 12mm | 50.6mm |
|
|
| BT30 IR8S-070-EX | 16mm | 50.6mm |
|
|
| BT30 IR11-100-EX | 19mm | 65.0mm |
|
|
| BT30 IR16-100-EX | 28mm | 46.0mm |
|
|
| BT30 IR20-100-EX | 34mm | 45.0mm |
|
|
| BT30 IR25-100-EX | 42mm | 38.0mm |
|
|
| BT30 IR32-100-EX | 50mm | 34.5mm |
|
|
| BT30 IR32-100-EXG | 50mm | 34.5mm |
|
|
| BT40 IR08-070-EX | 12mm | 50.6mm |
|
|
| BT40 IR8S-070-EX | 16mm | 50.6mm |
|
|
| BT40 IR11-070-EX | 19mm | 35.0mm |
|
|
| BT40 IR11-100-EX | 19mm | 65.0mm |
|
|
| BT40 IR16-100-EX | 28mm | 46.0mm |
|
|
| BT40 IR20-100-EX | 34mm | 45.0mm |
|
|
| BT40 IR25-100-EX | 42mm | 38.0mm |
|
|
| BT40 IR32-100-EX | 50mm | 34.5mm |
|
|
| BT40 IR32-100-EXG | 50mm | 34.5mm |
|
|
| BT40 IR40-100-EX | 63mm | 30.5mm |
|
|
| BT50 IR08-070-EX | 12mm | 50.6mm |
|
|
| BT50 IR8S-070-EX | 16mm | 50.6mm |
|
|
| BT50 IR11-100-EX | 19mm | 65.0mm |
|
|
| BT50 IR16-100-EX | 28mm | 46.0mm |
|
|
| BT50 IR20-100-EX | 34mm | 45.0mm |
|
|
| BT50 IR25-110-EX | 42mm | 48.0mm |
|
|
| BT50 IR32-110-EX | 50mm | 44.5mm |
|
|
| BT50 IR32-110-EXG | 50mm | 44.5mm |
|
|
| BT50 IR40-120-EX | 63mm | 50.5mm |
|
|
| BT50 IR42-120-EX | 85mm | 50.5mm |
|
