SF-CAT40-4.5°
- AT等級 : AT3+
- 表面硬化硬度 : HRC 52 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G6.3 25000 rpm Option to G2.5 25000 rpm

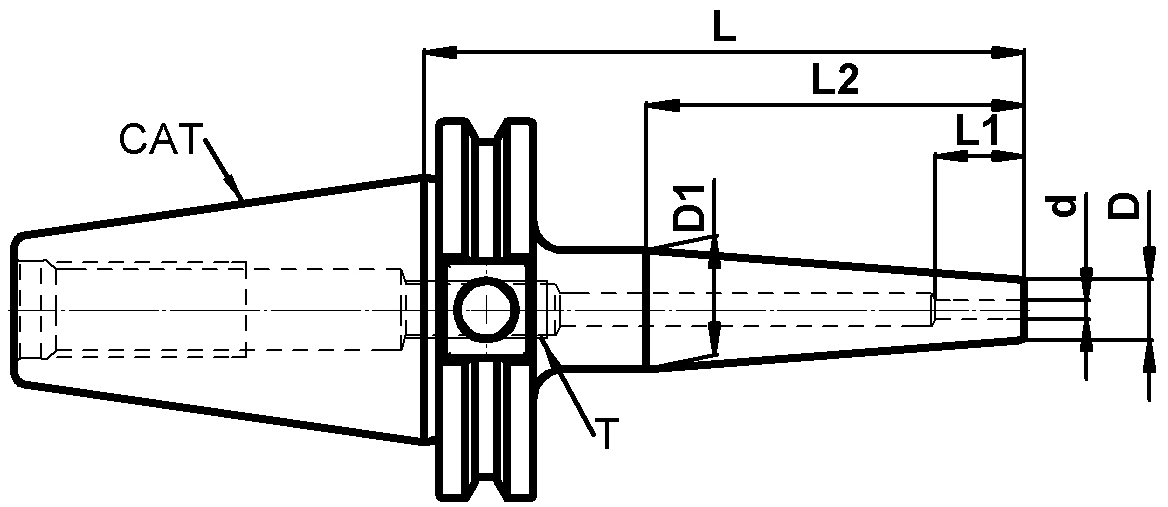

產品名稱 | D | L | 詢價數量 | |
---|---|---|---|---|
CAT40 SF03-3.15"-4.5° | 0.39" | 3.15" |
|
|
CAT40 SF03-4.00"-4.5° | 0.39" | 4.00" |
|
|
CAT40 SF03-6.00"-4.5° | 0.39" | 6.00" |
|
|
CAT40 SF04-3.15"-4.5° | 0.47" | 3.15" |
|
|
CAT40 SF04-4.00"-4.5° | 0.47" | 4.00" |
|
|
CAT40 SF04-6.00"-4.5° | 0.47" | 6.00" |
|
|
CAT40 SF05-3.15"-4.5° | 0.47" | 3.15" |
|
|
CAT40 SF05-4.00"-4.5° | 0.47" | 4.00" |
|
|
CAT40 SF05-6.00"-4.5° | 0.47" | 6.00" |
|
|
CAT40 SF06-3.15"-4.5° | 0.83" | 3.15" |
|
|
CAT40 SF06-4.00"-4.5° | 0.83" | 4.00" |
|
|
CAT40 SF06-6.00"-4.5° | 0.83" | 6.00" |
|
|
CAT40 SF06-8.00"-4.5° | 0.83" | 8.00" |
|
|
CAT40 SF08-3.15"-4.5° | 0.83" | 3.15" |
|
|
CAT40 SF08-4.00"-4.5° | 0.83" | 4.00" |
|
|
CAT40 SF08-6.00"-4.5° | 0.83" | 6.00" |
|
|
CAT40 SF08-8.00"-4.5° | 0.83" | 8.00" |
|
|
CAT40 SF10-3.15"-4.5° | 0.94" | 3.15" |
|
|
CAT40 SF10-4.00"-4.5° | 0.94" | 4.00" |
|
|
CAT40 SF10-6.00"-4.5° | 0.94" | 6.00" |
|
|
CAT40 SF10-8.00"-4.5° | 0.94" | 8.00" |
|
|
CAT40 SF12-3.15"-4.5° | 0.94" | 3.15" |
|
|
CAT40 SF12-4.00"-4.5° | 0.94" | 4.00" |
|
|
CAT40 SF12-6.00"-4.5° | 0.94" | 6.00" |
|
|
CAT40 SF12-8.00"-4.5° | 0.94" | 8.00" |
|
|
CAT40 SF16-3.15"-4.5° | 1.06" | 3.15" |
|
|
CAT40 SF16-4.00"-4.5° | 1.06" | 4.00" |
|
|
CAT40 SF16-6.00"-4.5° | 1.06" | 6.00" |
|
|
CAT40 SF16-8.00"-4.5° | 1.06" | 8.00" |
|
|
CAT40 SF20-3.15"-4.5° | 1.30" | 3.15" |
|
|
CAT40 SF20-4.00"-4.5° | 1.30" | 4.00" |
|
|
CAT40 SF20-6.00"-4.5° | 1.30" | 6.00" |
|
|
CAT40 SF20-8.00"-4.5° | 1.30" | 8.00" |
|
|
CAT40 SF25-4.00"-4.5° | 1.73" | 4.00" |
|
|
CAT40 SF25-6.00"-4.5° | 1.73" | 6.00" |
|
|
CAT40 SF25-8.00"-4.5° | 1.73" | 8.00" |
|
|
CAT40 SF32-4.00"-4.5° | 1.73" | 4.00" |
|
