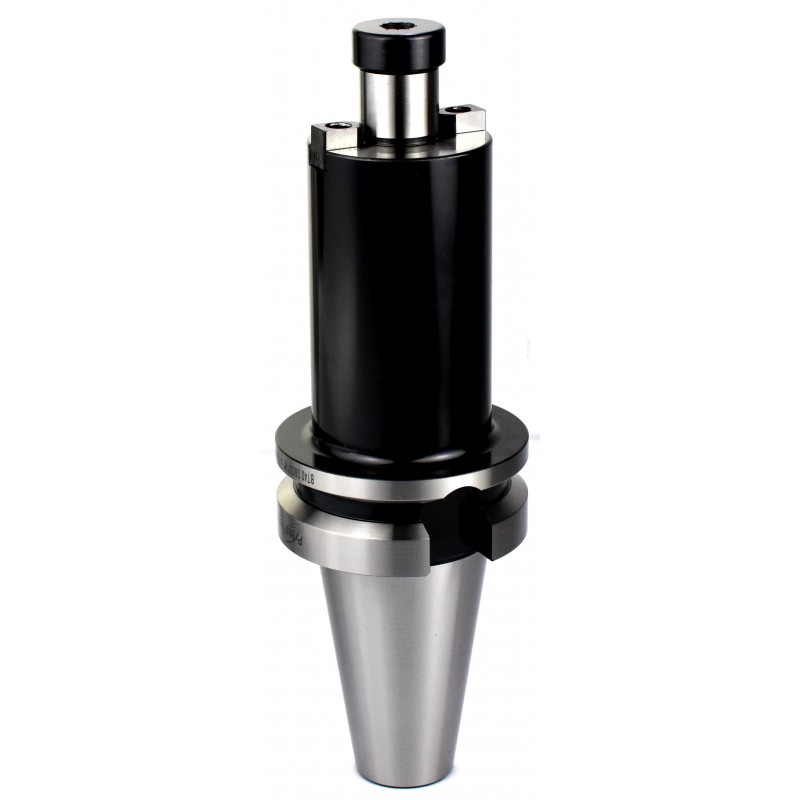

SF-BT40-3°
- AT等級 : AT3+
- 表面硬化硬度 : HRC 52 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G6.3 25000 rpm Option to G2.5 25000 rpm
| 產品名稱 | D | L | 詢價數量 | |
|---|---|---|---|---|
| BT40 SF03-100-3° | 9mm | 100mm |
|
|
| BT40 SF03-160-3° | 9mm | 160mm |
|
|
| BT40 SF04-100-3° | 10mm | 100mm |
|
|
| BT40 SF04-160-3° | 10mm | 160mm |
|
|
| BT40 SF05-100-3° | 11mm | 100mm |
|
|
| BT40 SF05-160-3° | 11mm | 160mm |
|
|
| BT40 SF06-100-3° | 12mm | 100mm |
|
|
| BT40 SF06-160-3° | 12mm | 160mm |
|
|
| BT40 SF06-200-3° | 12mm | 200mm |
|
|
| BT40 SF08-100-3° | 14mm | 100mm |
|
|
| BT40 SF08-160-3° | 14mm | 160mm |
|
|
| BT40 SF08-200-3° | 14mm | 200mm |
|
|
| BT40 SF10-100-3° | 16mm | 100mm |
|
|
| BT40 SF10-160-3° | 16mm | 160mm |
|
|
| BT40 SF10-200-3° | 16mm | 200mm |
|
|
| BT40 SF12-100-3° | 18mm | 100mm |
|
|
| BT40 SF12-160-3° | 18mm | 160mm |
|
|
| BT40 SF12-200-3° | 18mm | 200mm |
|
|
| BT40 SF16-100-3° | 22mm | 100mm |
|
|
| BT40 SF16-160-3° | 22mm | 160mm |
|
|
| BT40 SF16-200-3° | 22mm | 200mm |
|
|
| BT40 SF20-100-3° | 27mm | 100mm |
|
|
| BT40 SF20-160-3° | 27mm | 160mm |
|
|
| BT40 SF20-200-3° | 27mm | 200mm |
|
|
| BT40 SF25-100-3° | 34mm | 100mm |
|
|
| BT40 SF25-160-3° | 34mm | 160mm |
|
|
| BT40 SF25-200-3° | 34mm | 200mm |
|
