SF-BT50-4.5°
- AT等級 : AT3+
- 表面硬化硬度 : HRC 52 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G6.3 25000 rpm Option to G2.5 25000 rpm

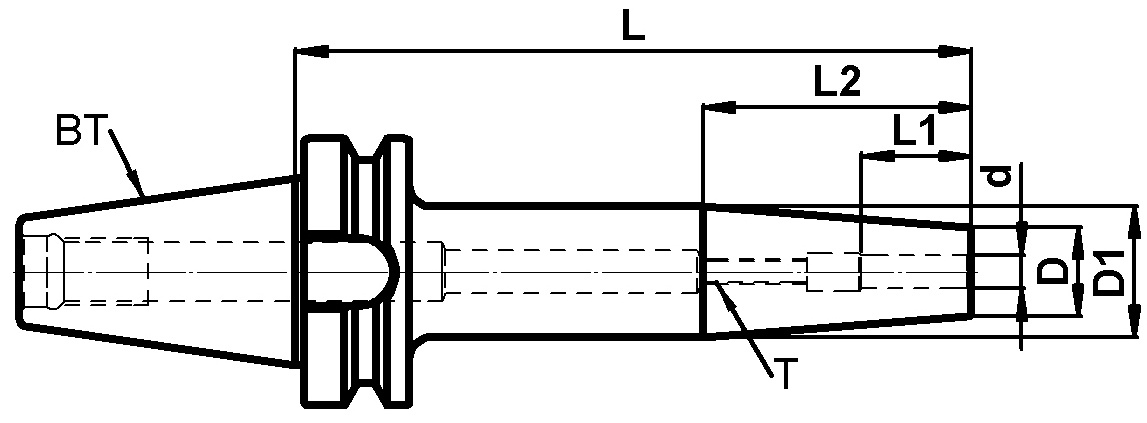

| 產品名稱 | D | L | 詢價數量 | |
|---|---|---|---|---|
| BT50 SF03-100-4.5° | 10mm | 100mm |
|
|
| BT50 SF03-160-4.5° | 10mm | 160mm |
|
|
| BT50 SF03-200-4.5° | 10mm | 200mm |
|
|
| BT50 SF04-100-4.5° | 12mm | 100mm |
|
|
| BT50 SF04-160-4.5° | 12mm | 160mm |
|
|
| BT50 SF04-200-4.5° | 12mm | 200mm |
|
|
| BT50 SF05-100-4.5° | 12mm | 100mm |
|
|
| BT50 SF05-160-4.5° | 12mm | 160mm |
|
|
| BT50 SF05-200-4.5° | 12mm | 200mm |
|
|
| BT50 SF06-100-4.5° | 21mm | 100mm |
|
|
| BT50 SF06-160-4.5° | 21mm | 160mm |
|
|
| BT50 SF06-200-4.5° | 21mm | 200mm |
|
|
| BT50 SF08-100-4.5° | 21mm | 100mm |
|
|
| BT50 SF08-160-4.5° | 21mm | 160mm |
|
|
| BT50 SF08-200-4.5° | 21mm | 200mm |
|
|
| BT50 SF10-100-4.5° | 24mm | 100mm |
|
|
| BT50 SF10-160-4.5° | 24mm | 160mm |
|
|
| BT50 SF10-200-4.5° | 24mm | 200mm |
|
|
| BT50 SF12-100-4.5° | 24mm | 100mm |
|
|
| BT50 SF12-160-4.5° | 24mm | 160mm |
|
|
| BT50 SF12-200-4.5° | 24mm | 200mm |
|
|
| BT50 SF14-100-4.5° | 27mm | 100mm |
|
|
| BT50 SF14-160-4.5° | 27mm | 160mm |
|
|
| BT50 SF16-100-4.5° | 27mm | 100mm |
|
|
| BT50 SF16-160-4.5° | 27mm | 160mm |
|
|
| BT50 SF16-200-4.5° | 27mm | 200mm |
|
|
| BT50 SF18-100-4.5° | 33mm | 100mm |
|
|
| BT50 SF18-160-4.5° | 33mm | 160mm |
|
|
| BT50 SF20-100-4.5° | 33mm | 100mm |
|
|
| BT50 SF20-160-4.5° | 33mm | 160mm |
|
|
| BT50 SF20-200-4.5° | 33mm | 200mm |
|
|
| BT50 SF25-100-4.5° | 44mm | 100mm |
|
|
| BT50 SF25-160-4.5° | 44mm | 160mm |
|
|
| BT50 SF25-200-4.5° | 44mm | 200mm |
|
|
| BT50 SF32-100-4.5° | 44mm | 100mm |
|
|
| BT50 SF32-160-4.5° | 44mm | 160mm |
|
|
| BT50 SF32-200-4.5° | 44mm | 200mm |
|
