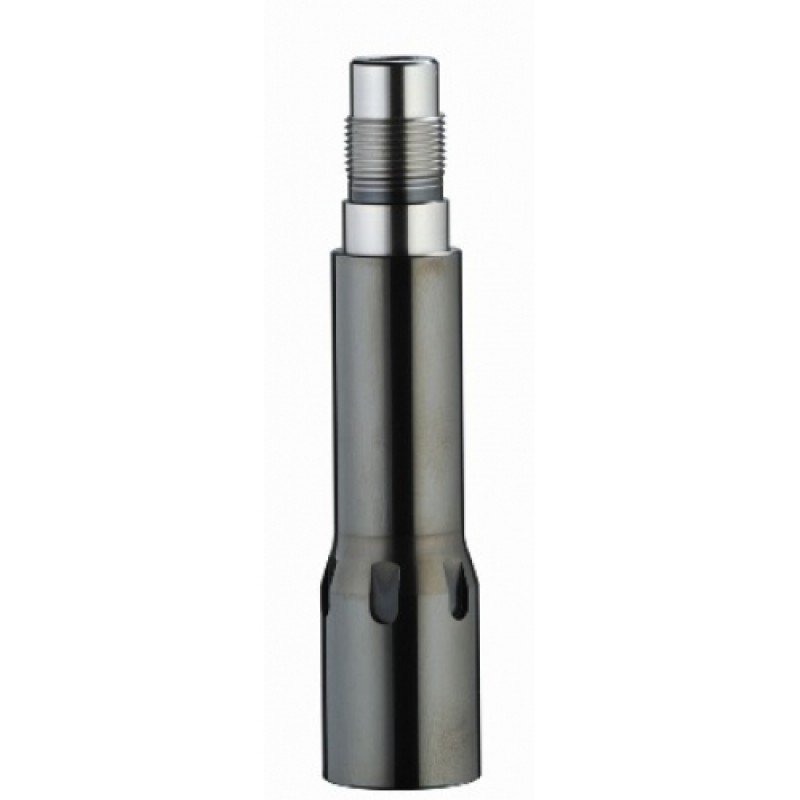

延長專用延長桿
- 表面硬化硬度 : HRC 56 ± 2
- 偏擺 : 0.003mm(0.00012")
- 動平衡等級 : G2.5 25000 rpm

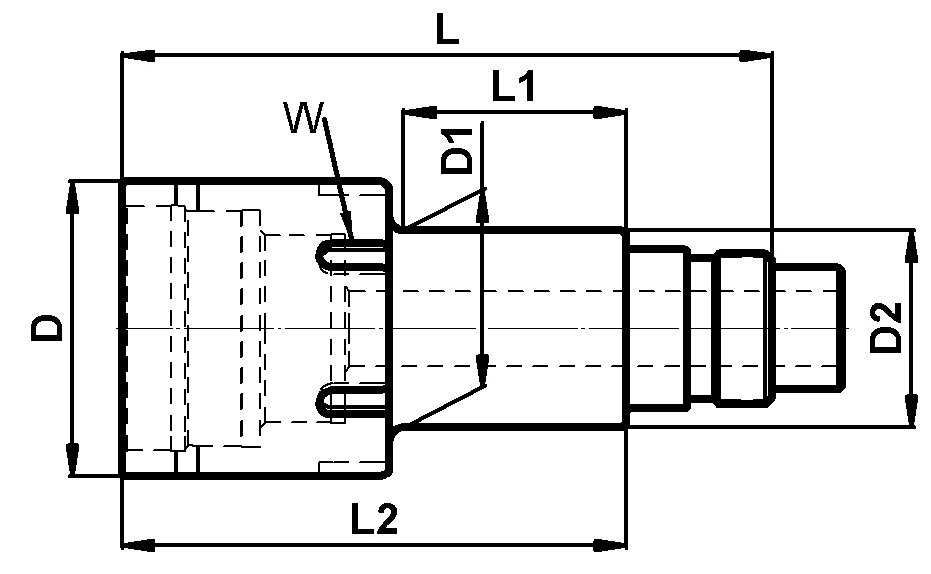

產品名稱 | D | L | 詢價數量 | |
---|---|---|---|---|
IR08-IR08-035-EX | 12mm | 35mm |
|
|
IR08-IR08-050-EX | 12mm | 50mm |
|
|
IR08-IR08-100-EX | 12mm | 100mm |
|
|
IR8S-IR08-050-EX | 16mm | 50mm |
|
|
IR8S-IR08-100-EX | 16mm | 100mm |
|
|
IR8S-IR8S-050-EX | 16mm | 50mm |
|
|
IR8S-IR8S-100-EX | 16mm | 100mm |
|
|
IR11-IR08-020-EX | 19mm | 36mm |
|
|
IR11-IR08-050-EX | 19mm | 66mm |
|
|
IR11-IR08-070-EX | 19mm | 86mm |
|
|
IR11-IR08-100-EX | 19mm | 116mm |
|
|
IR11-IR8S-050-EX | 19mm | 66mm |
|
|
IR11-IR8S-070-EX | 19mm | 86mm |
|
|
IR11-IR8S-100-EX | 19mm | 116mm |
|
|
IR11-IR11-100-EX | 19mm | 100mm |
|
|
IR11-IR11-200-EX | 19mm | 200mm |
|
|
IR16-IR11-050-EX | 28mm | 69mm |
|
|
IR16-IR11-100-EX | 28mm | 119mm |
|
|
IR16-IR16-100-EX | 28mm | 100mm |
|
|
IR16-IR16-112-EX | 28mm | 112mm |
|
|
IR16-IR16-200-EX | 28mm | 200mm |
|
|
IR20-IR16-050-EX | 34mm | 51mm |
|
|
IR20-IR16-100-EX | 34mm | 101mm |
|
|
IR20-IR16-112-EX | 34mm | 113mm |
|
|
IR20-IR20-100-EX | 34mm | 100mm |
|
|
IR20-IR20-112-EX | 34mm | 112mm |
|
|
IR20-IR20-200-EX | 34mm | 200mm |
|
|
IR25-IR16-050-EX | 42mm | 58mm |
|
|
IR25-IR16-100-EX | 42mm | 108mm |
|
|
IR25-IR16-112-EX | 42mm | 120mm |
|
|
IR25-IR20-050-EX | 42mm | 57mm |
|
|
IR25-IR20-100-EX | 42mm | 107mm |
|
|
IR25-IR20-112-EX | 42mm | 119mm |
|
|
IR25-IR25-100-EX | 42mm | 100mm |
|
|
IR25-IR25-112-EX | 42mm | 112mm |
|
|
IR25-IR25-200-EX | 42mm | 200mm |
|
|
IR32-IR16-050-EX | 50mm | 62mm |
|
|
IR32-IR16-100-EX | 50mm | 112mm |
|
|
IR32-IR20-050-EX | 50mm | 61mm |
|
|
IR32-IR20-100-EX | 50mm | 111mm |
|
|
IR32-IR25-055-EX | 50mm | 59mm |
|
|
IR32-IR25-100-EX | 50mm | 104mm |
|
|
IR32-IR25-112-EX | 50mm | 116mm |
|
|
IR32-IR32-100-EX | 50mm | 100mm |
|
|
IR32-IR32-200-EX | 50mm | 200mm |
|
|
IR40-IR25-060-EX | 63mm | 108mm |
|
|
IR40-IR25-100-EX | 63mm | 108mm |
|
|
IR40-IR25-112-EX | 63mm | 120mm |
|
|
IR40-IR32-060-EX | 63mm | 104mm |
|
|
IR40-IR32-100-EX | 63mm | 104mm |
|
|
IR40-IR32-112-EX | 63mm | 116mm |
|
|
IR40-IR40-100-EX | 63mm | 100mm |
|
|
IR40-IR40-112-EX | 63mm | 112mm |
|
|
IR40-IR41-100-EX | 63mm | 100mm |
|
|
IR40-IR42-100-EX | 63mm | 100mm |
|
|
IR41-IR41-100-EX | 70mm | 100mm |
|
|
IR41-IR42-100-EX | 70mm | 100mm |
|
|
IR42-IR42-100-EX | 85mm | 100mm |
|
◎詳細尺寸,請參閱檔案下載之 『 型錄 』
