SM-BT40(出水式)

SM-BT40(出水式)

  • AT等級 : AT3+

  • 表面硬化硬度 : HRC 58 ± 2

  • 偏擺 : 0.005mm(0.0002")

  • 動平衡等級 : G6.3 25000 rpm Option to G2.5 25000 rpm

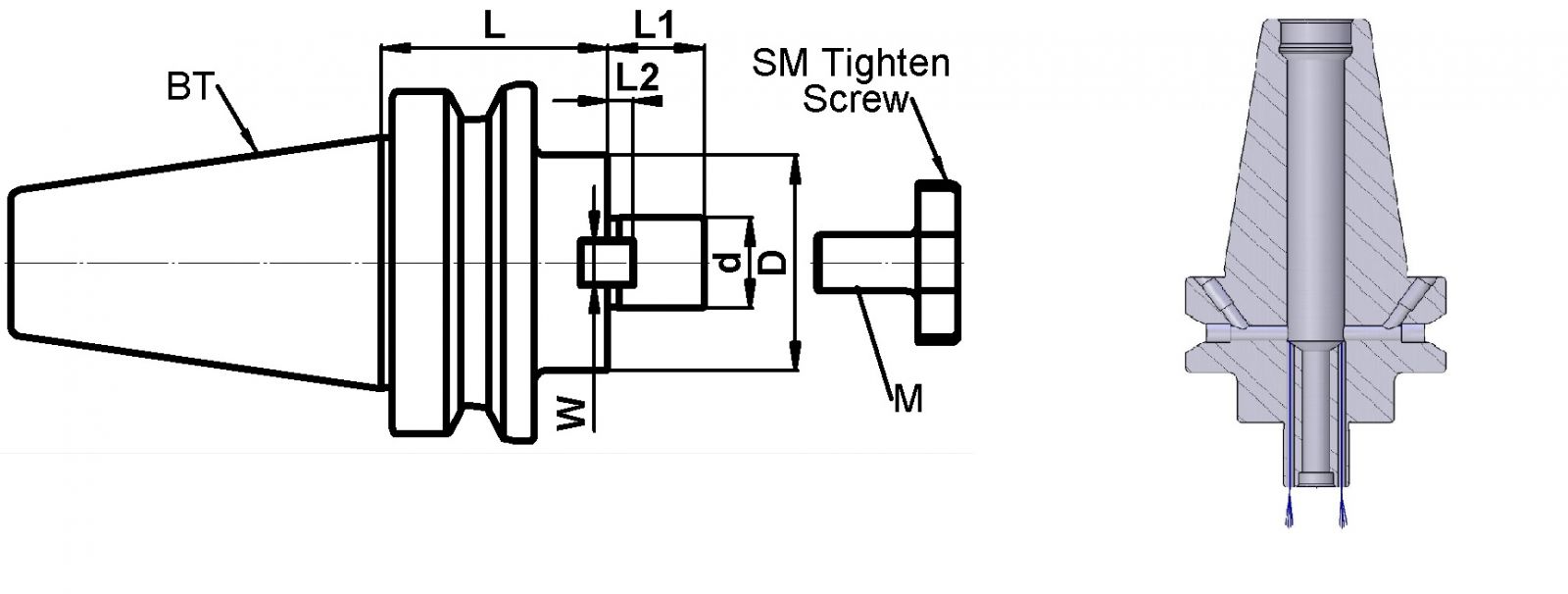

產品名稱 D L 詢價數量
BT40 SM16-040J 38mm 40mm
BT40-SM16-100J 38mm 100mm
BT40-SM16-160J 38mm 160mm
BT40-SM16-200J 38mm 200mm
BT40 SM22-040J 48mm 40mm
BT40 SM22-100J 48mm 100mm
BT40 SM22-160J 48mm 160mm
BT40 SM22-200J 48mm 200mm
BT40 SMB22-040J 60mm 40mm
BT40 SMB22-100J 60mm 100mm
BT40 SMB22-160J 60mm 160mm
BT40 SMB22-200J 60mm 200mm
BT40 SM27-040J 60mm 40mm
BT40 SM27-100J 60mm 100mm
BT40 SM27-160J 60mm 160mm
BT40 SM27-200J 60mm 200mm
BT40 SMB27-060J 75mm 60mm
BT40 SMB27-100J 75mm 100mm
BT40 SMB27-160J 75mm 160mm
BT40 SMB27-200J 75mm 200mm
BT40 SM32-050J 78mm 50mm
BT40 SM32-100J 78mm 100mm
BT40 SM32-160J 78mm 160mm
BT40 SM32-200J 78mm 200mm
BT40 SM40-050J 89mm 50mm
BT40 SM40-100J 89mm 100mm
BT40 SM40-160J 89mm 160mm

◎詳細尺寸,請參閱檔案下載之 『 型錄
